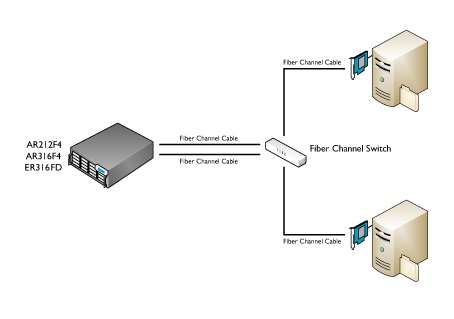

Single Switch Solution - Dual Channel Connections
-
External RAID storage shared by 2 server, with the same/different OS.
-
Each Server is using individual data channel to access individual RAID/Volume set, so that no data conflict or corruptions.
-
Performance up 4Gbps for Fibre Channel.
-
Storage sizes with up to 9TB for 2U model and 12TB for 3U model.
-
Supported RAID 0, 1, 1+0, 3, 5 and 6.
-
Note: Each Server equipped with Single Channel SCSI/Fibre Channel Host Bus Adapter Controllers.

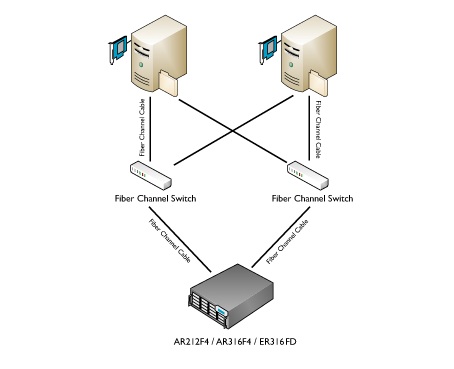

Dual Switch Solutions - Dual Channel Connections
-
Dual Channel Fibre Channel Card, Switch and Storage eliminates all points of failure.
-
External RAID storage shared by 2 server, with the same/different OS.
-
Each Server is using individual data channel to access individual RAID/Volume set, so that no data conflict or corruptions.
-
Performance up 4Gbps for Fibre Channel.
-
Storage sizes with up to 9TB for 2U model and 12TB for 3U model.
-
Support RAID 0, 1, 1+0, 3, 5 and 6.
-
Note: Each Server equipped with Dual Channel SCSI/Fibre Channel Host Bus Adapter Controllers.
SAN Benefit - DAS Solutions & SAN Solutions

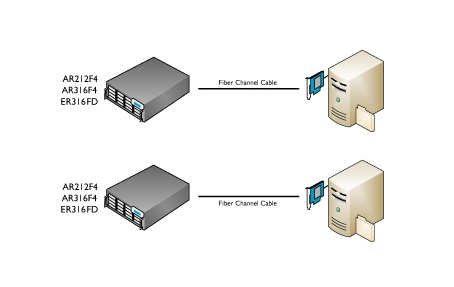

DAS Solutions:
SAN Solutions:
Disk Utilization
-
DAS solution attached to server directly and unutilized space will be wasted.
-
SAN solution can allocated the space to server.
Management
-
Centralize Storage Management in SAN environment.
Improved Data backup and Recovery
|
|
